Product

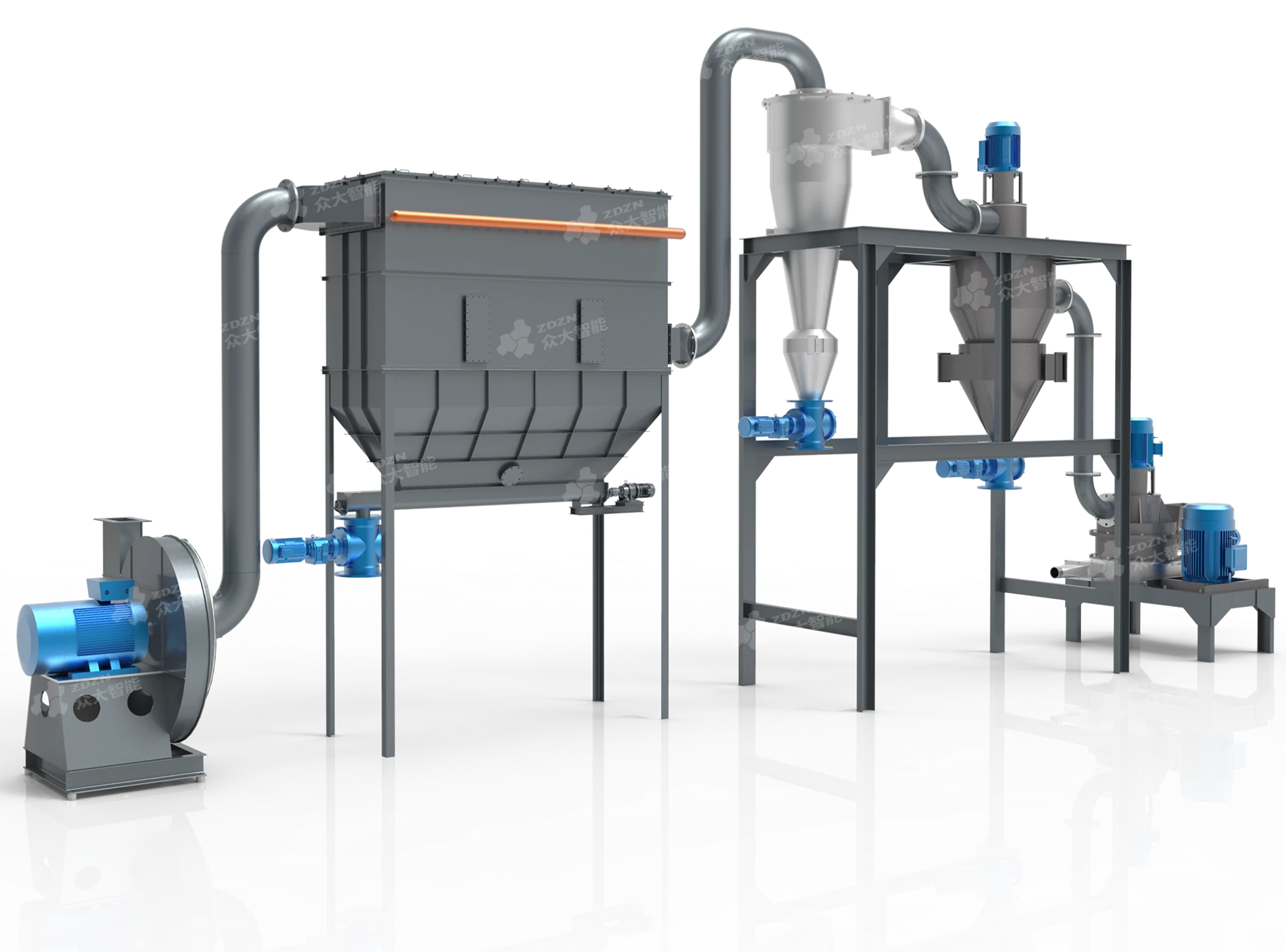

Shaping Mill 300
Shaping machine is mainly used to improve the morphology of graphite powder, control the particle size of graphite powder in a certain range and improve its vibration density. The graphite micropowder is a gravel structure, sharp edges, after entering the shaping machine, through the operation of the shaping machine, the material and the side wall grind each other, the material and the material grind each other, grinding the edges and corners of the graphite micropowder, so as to achieve the effect of graphite shaping.
Feature
Improve the shape of products, effectively enhance the tap density
The equipment through centrifugation, impact, kneading to achieve the shape of the material, the finished product round, efficient lifting vibration.
Good depolymerization effect, high yield
It has a good depolymerization and dispersion effect on polymer, high yield of finished products.
Good crushing effect, control the fineness of the product
The speed of the main motor is adjustable by frequency conversion, set a variety of functions in one. The granularity can be adjusted and effectively control the granularity of the product.
Advanced production technology, processing capacity
Combined with the company's advanced technology concept, the system is rationally configured according to the use situation, reduce energy consumption, and effectively improved the processing capacity of a single system.
01
High pertinence
02
High production capacity
03
Consistent granularity
04
Low energy consumption
Anode materials : green petroleum coke (GPC coke), green needle coke, calcined petroleum coke (CPC coke), calcined needle coke.
| Model | ZD-ZXJ-100 | ZD-ZXJ-300 | ZD-ZXJ-300A |
|---|---|---|---|
| Grinding cavity volume | 100L | 300L | 300L |
| Main Motor Power | 37kW | 75kW | 75kW |
| Graded motor | 7.5kW | 11kW | 11kW |
| Feed granularity | ＜500μm | ＜500μm | ＜500μm |
| Product fineness | 5-75μm | 5-75μm | 5-75μm |
| Capacity | 200-600kg/h | 500-700kg/h | 500-1000kg/h |
| Equipment Dimensions(mm) | 10800x2600x6000 | 10600x2900x6100 | 10600x2900x6100 |
