Product

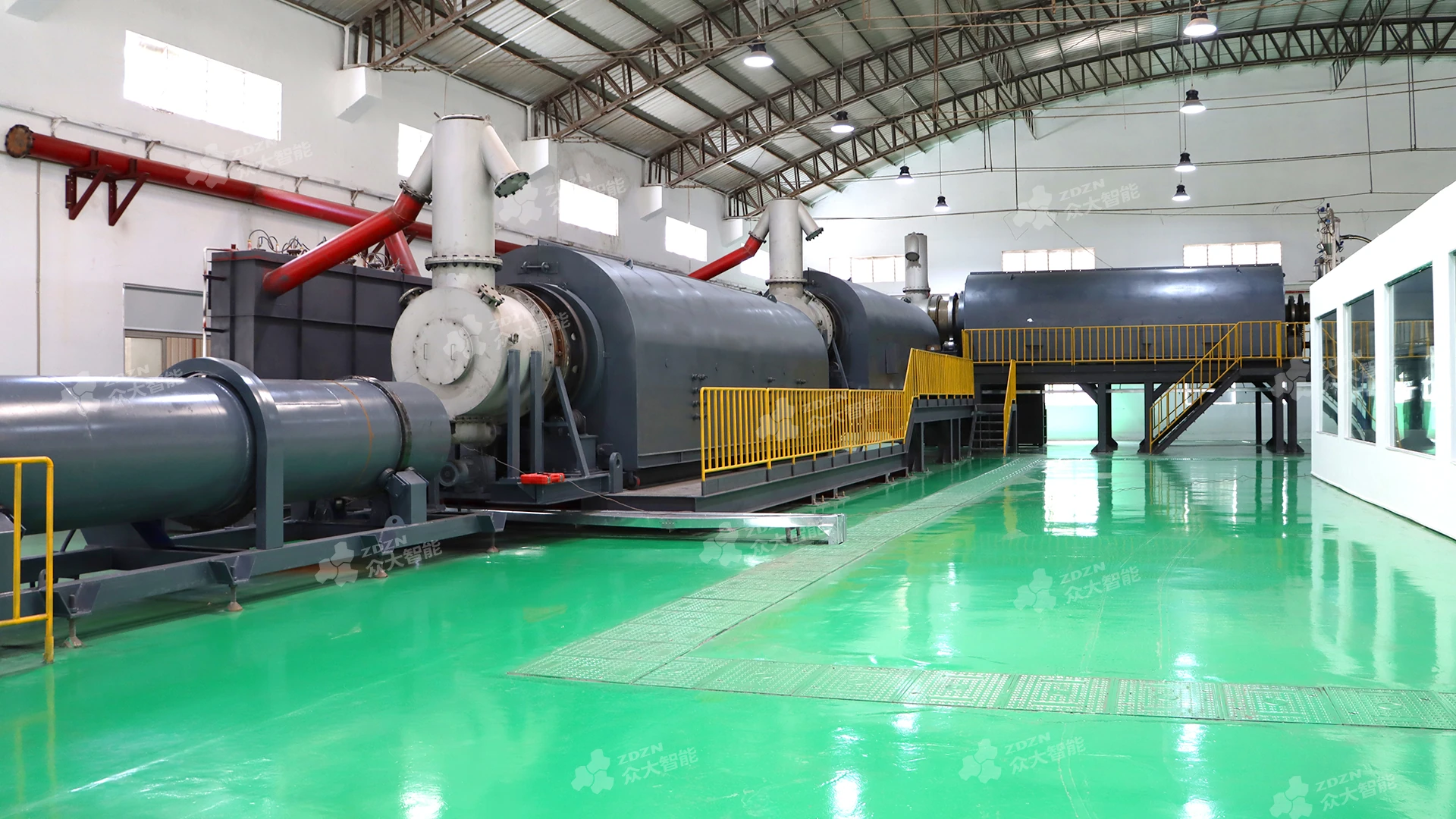

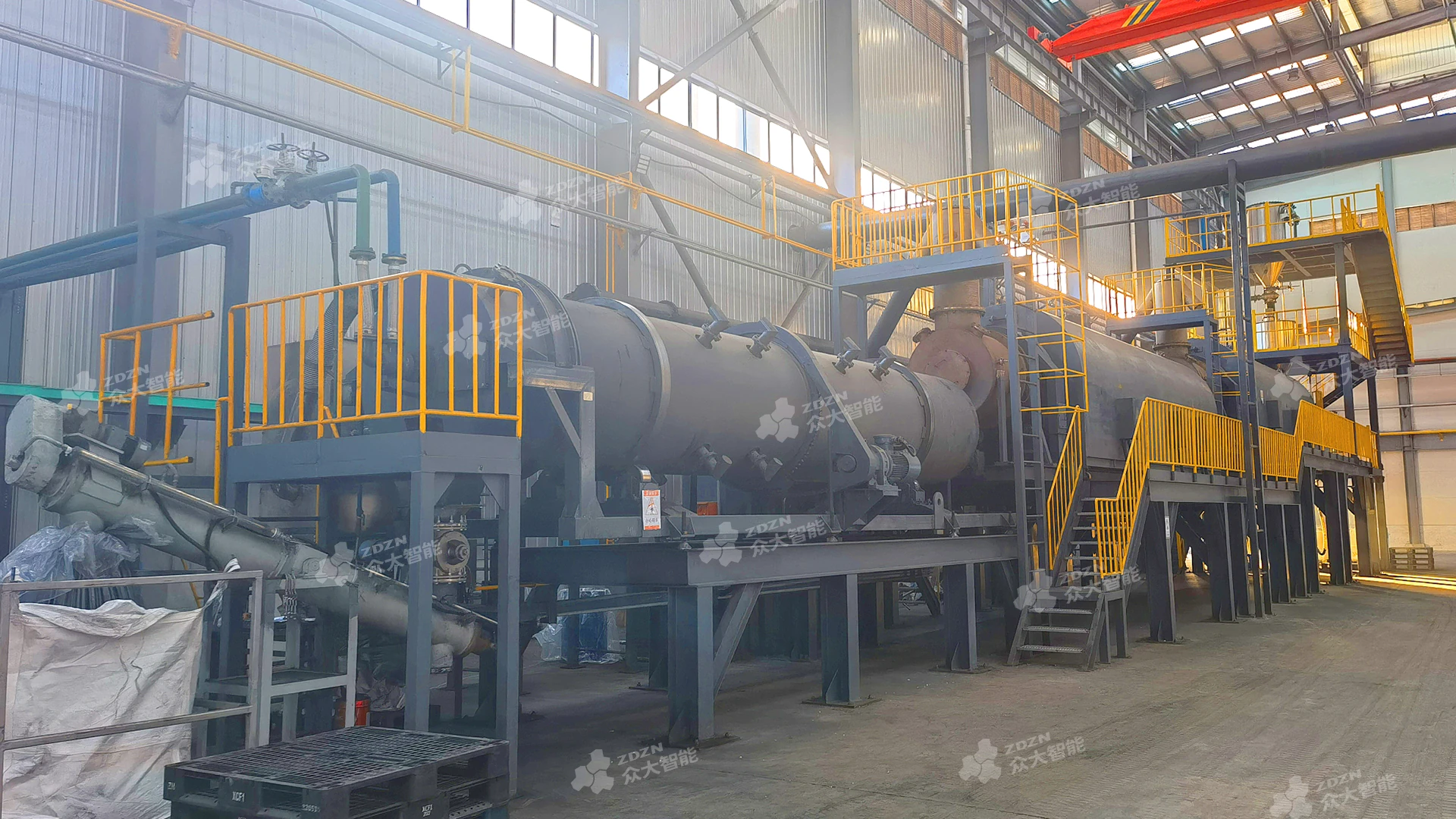

Granulation + pre-carbonization kiln

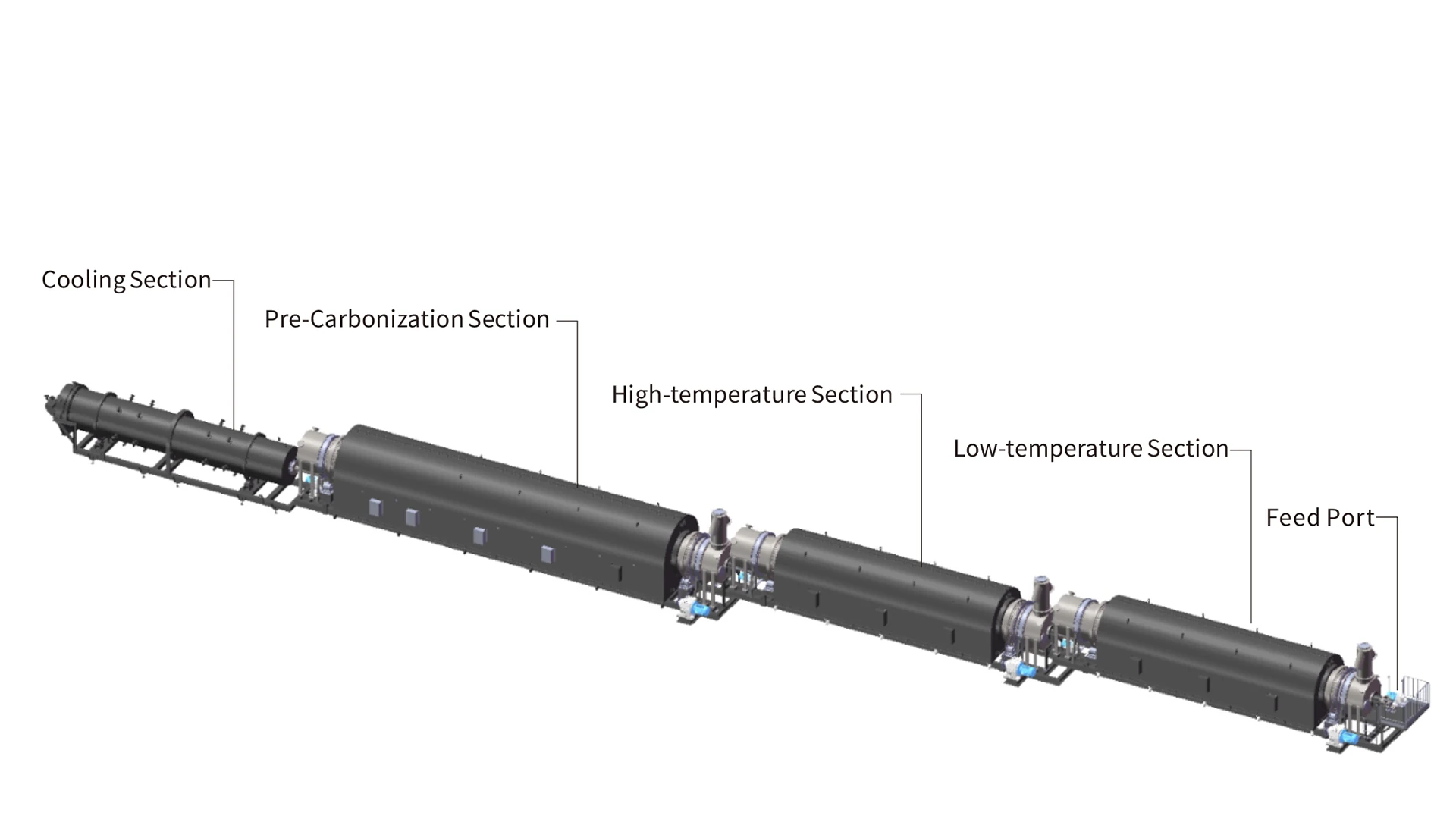

After mixing pitch and raw materials evenly and sufficiently, they can be sent to granulation + pre-carbonization kiln. The electrical heating device will provide staged heating to help the mixed materials coated and carbonization. The complete granulation and pre carbonization system contains low-temperature section, high-temperature section, pre-carbonization section, cooling section and exhaust gas treatment system. The maximum temperature can reach 1100℃. With modular design, the granulation + pre-carbonization kiln can be combined according to actual production requirements, such as high temperature section + carbonization section + cooling section, carbonization section + cooling section, etc.
Feature
Multi-zone temperature control, maximum operating temperature is 1100°C
Multi-zone temperature control and intelligent curve heating ensure stable product quality
Continuous production
Automatic feeding, continuous feeding and output, continuous production ensures product quality
01
Stable Performance
02
High capacity ≥15ton/day
03
Low consumption
04
Easy to operate
05
PLC Operation and high automaticity
Anode materials : green petroleum coke (GPC coke), green needle coke, calcined petroleum coke (CPC coke), calcined needle coke, natural graphite and hard carbon.
| Parameter | Value |
|---|---|
| Rated power consumption | 2050 kW |
| Capacity | 15 tons / day |
| Maximum rated temperature of low-temperature section | 600 ℃ |
| Operating temperature of low-temperature section | 550 ℃ |
| Low-temperature section temperature zone grouping | 6 Zone |
| Maximum rated temperature of high-temperature section | 700 ℃ |
| Operating temperature of high-temperature section | 650 ℃ |
| High-temperature section temperature zone grouping | 6 Zone |
| Maximum rated temperature of pre-carbonization section | 1100 ℃ |
| Operating temperature of pre-carbonization section | 1050 ℃ |
| Pre-carbonization section temperature zone grouping | 8 Zone |
| Oxygen content | ≤50 ppm |
| Cooling water consumption | 70-90 m³/h |
| Heating method | Electric heating |
| Equipment dimensions | 60.8×3.8×6.7m |
